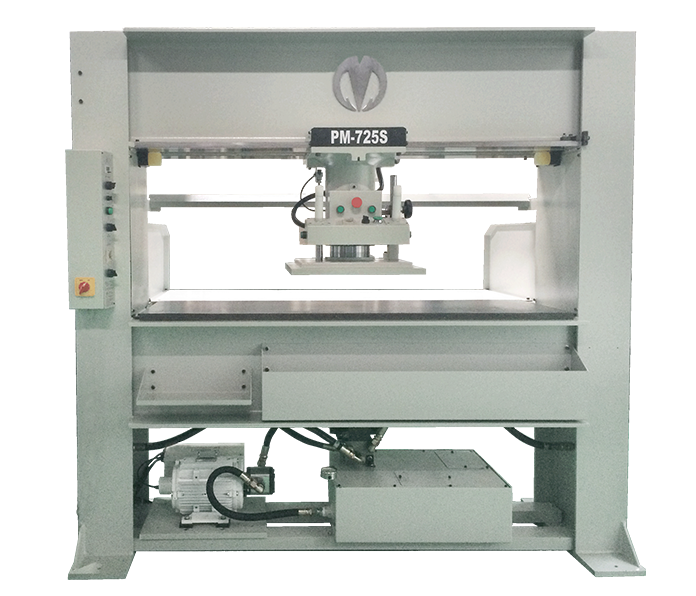

ECO Traveling Head Cutting Machine (25tons)

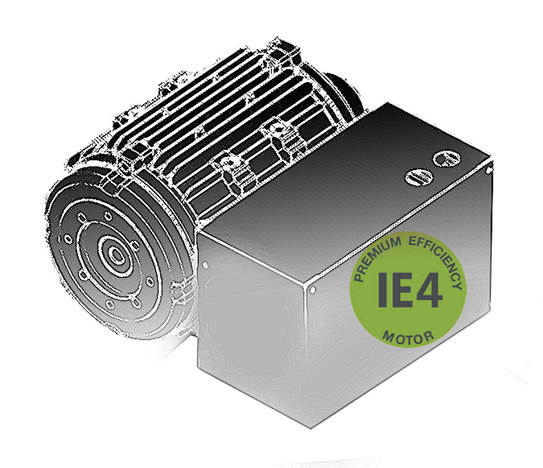

Equips with MINZ IE4 Energy System,average energy saving 70~90% comparing to traditional power system.

When the machine is not cutting,it generates zero noise,and the temperature of hydraluic fluid and motor is reduced 30%,providing operator a more comfortable working environment.

Model PM-725S
Cutting Force 25tons
Average KW 0.1 ~ 0.3 KW
Cutting Area 500 x 1600mm
Stroke 5 ~ 120mm
N. W. 1655 kgs
G. W. We will supply the information before delivery
Dimension 2230 x 1255 x 1958 mm
Packing Size We will supply the information before delivery
Hydraulic Oil 55L

We reserve the rights to change the specs and dimension above without further notification.
