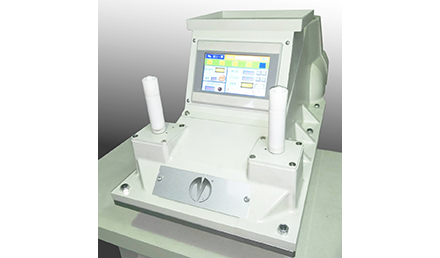

PM-525SP Eco Auto Distance Swing Arm Cutting Machine (25 tons)
PM-525SP
Eco Auto Distance Swing Arm Cutting Machine (25 tons)

Equips with MINZ Servo System, consumes no energy when not cutting.

Temperature of hydraluic fluid and motor is reduced 30%, and uses 70% less electricity comparing to traditional cutting machine.

No need to configure cutting distance with each cut up to 0.1 ton precision. Swinging requires less than 1kg strength, less fatigue to operate.

Patented Auto Pressure Commputing Techology voids distacnce factor, cutting quality is no longer affected by cutting board’s leveling. Cutting dies and board’s usage cycles are maximized.

Model PM-525SP
Cutting Force 25tons
Average KW 0.1 KW/hr.
Cutting Area 500 x 380mm
Stroke 5 ~ 100mm
N. W. 1100 kgs
G. W. We will supply the information before delivery
Dimension 1000 x 995 x h. 1365 mm
Packing Size We will supply the information before delivery
Hydraulic Oil 40 liters

We reserve the rights to change the specs and dimension above without further notification.
