PM-740AR Dual Dies CutBot
Dual Dies CutBot

AR is the most popular model of CutBot, its compact size equips with dual dies exchanging for auto nesting and dies inserting.

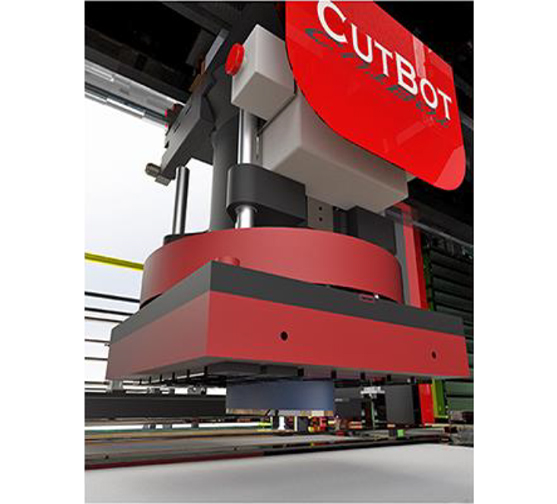

  • E-Magnetic Head picks up dies

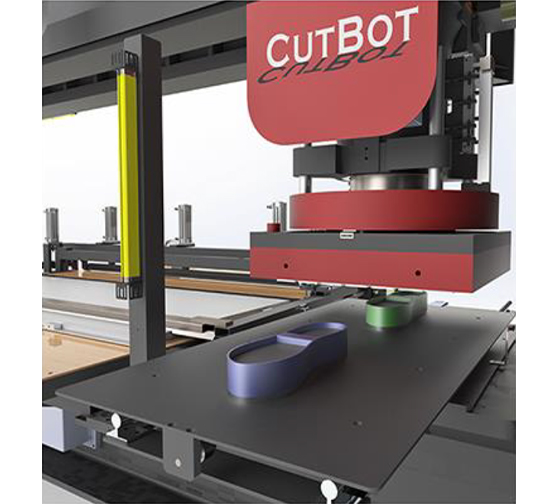

  • Dual-dies fast exchange for dies inserting

  • Auto nesting to standardize productivity with remote task-dispatching and monitoring

Model PM-740AR
Cutting Power 40 tons
Power Consumption 1.8  KW
Cutting Dimension 400 x 1510 mm2
Cutting Stroke 5~150 mm
Auto Turret X
Auto Nesting O
E-Magnetic Head O
Hydraulic Fluid 120 liters
Compressed Air >5 kg/cm2,50 L/min
Net Weight 3000 kgs
Machine Dimension 2907(W) x 2404(H) x 4865(L) mm
Packing & Gross Weight Provided before Delivery

We reserve the rights to change the specs and dimension above without further notification.
